Tig Consumables Parker Frk Series Kit Suits 9/20 Style Torches

Parker Tig FRK Complete Kit 9/20 Series

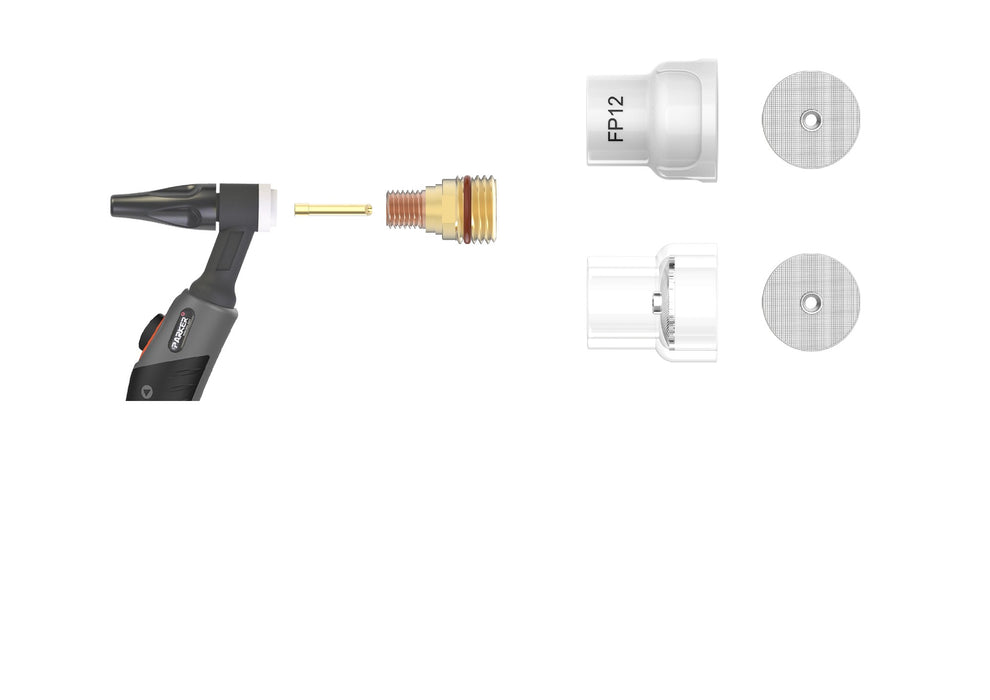

Parker FRK wear parts are all purpose consumable items used in addition to a Standard Gas Lens Body set-up. With a Secondary Replaceable Gauze set in the Nozzle these set-ups have a wider gas envelope for better weld protection and quality results.
Available as Standard Ceramic and High Performance Quartz.
The system allows for a longer stick out of the electrode giving both better access into more difficult to reach joints and improved visibility.
Traditionally used when welding more challenging and exotic materials, the system has now become more widely used as a result of giving the welder a greater degree of flexibility from a single set-up.
The Parker FRK series nozzles can be used on all materials and processes (including Pulse with Quartz set-ups) and have a simple and easy to replace front gauze set that pushes into place with a screen installation tool.

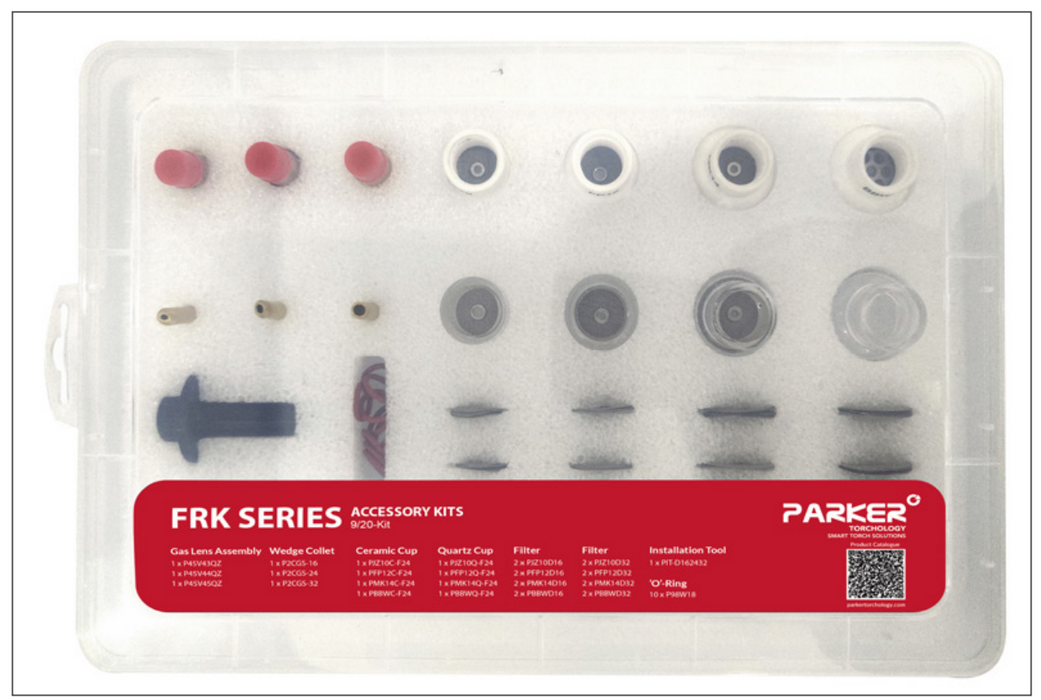

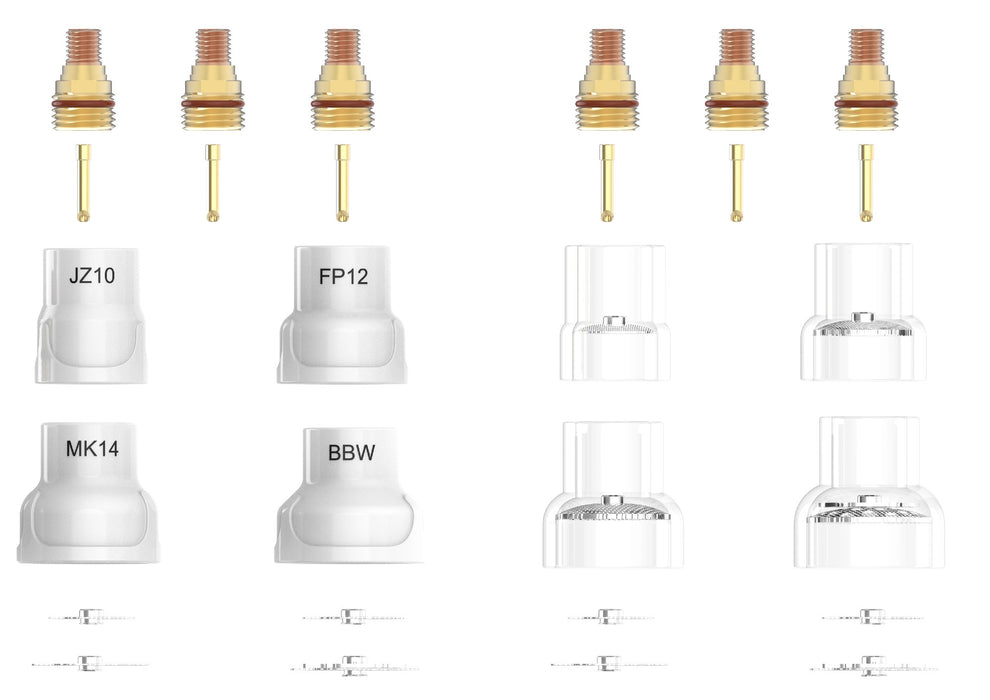

Parker FRK 9/20 Kit Includes:

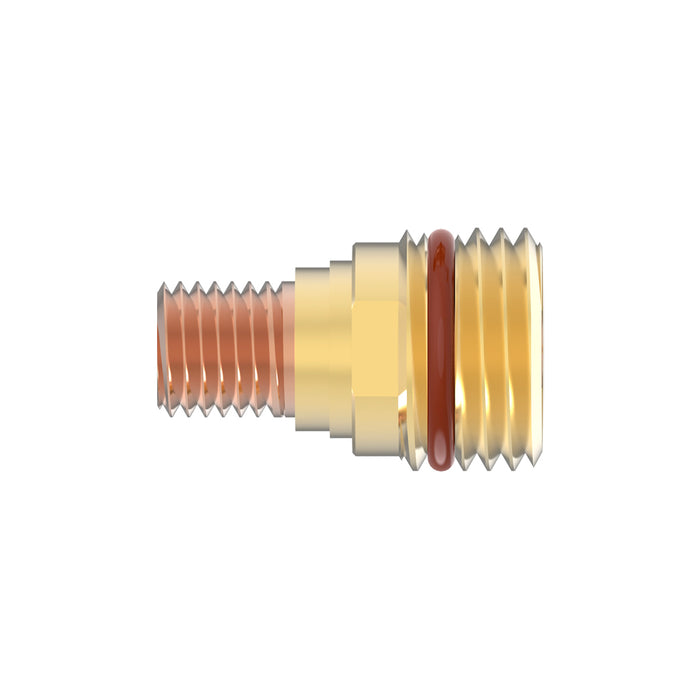

* P45V43QZ Gas Lens Assembly 1/16"-1.6mm With ‘O’ Ring
* P45V44QZ Gas Lens Assembly 3/32"-2.4mm With ‘O’ Ring
* P45V45QZ Gas Lens Assembly 1/8"-3.2mm With ‘O’ Ring

* P2CGS-16 Wedge Collet 1/16"-1.6mm
* P2CGS-24 Wedge Collet 3/32"-2.4mm
* P2CGS-32 Wedge Collet 1/8"-3.2mm

* PJZ10C-F24 JZ10 Ceramic Cup-Bore 17mm With 2.4mm Filter Screen
* PFP12C-F24 FP12 Ceramic Cup-Bore 20mm With 2.4mm Filter Screen
* PMK14C-F24 MK14 Ceramic Cup-Bore 23mm With 2.4mm Filter Screen

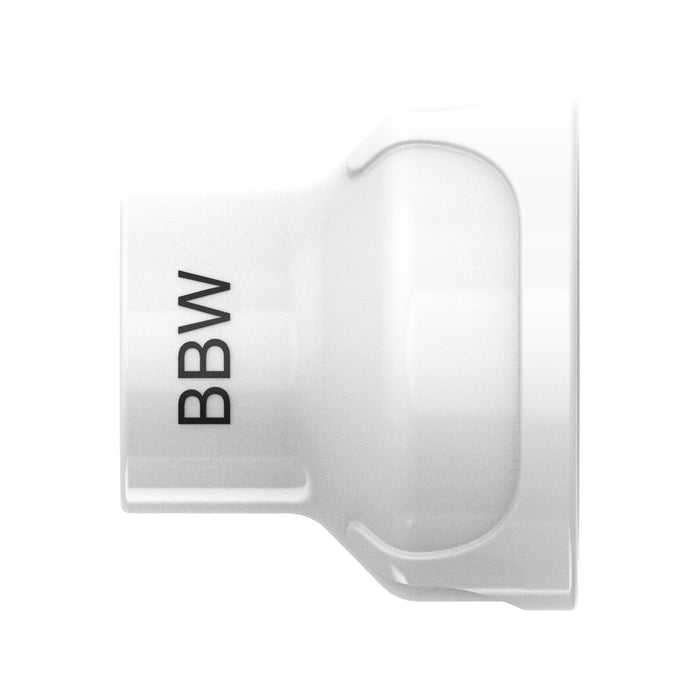

* PBBWC-F24 BBW Ceramic Cup-Bore 25mm With 2.4mm Filter Screen

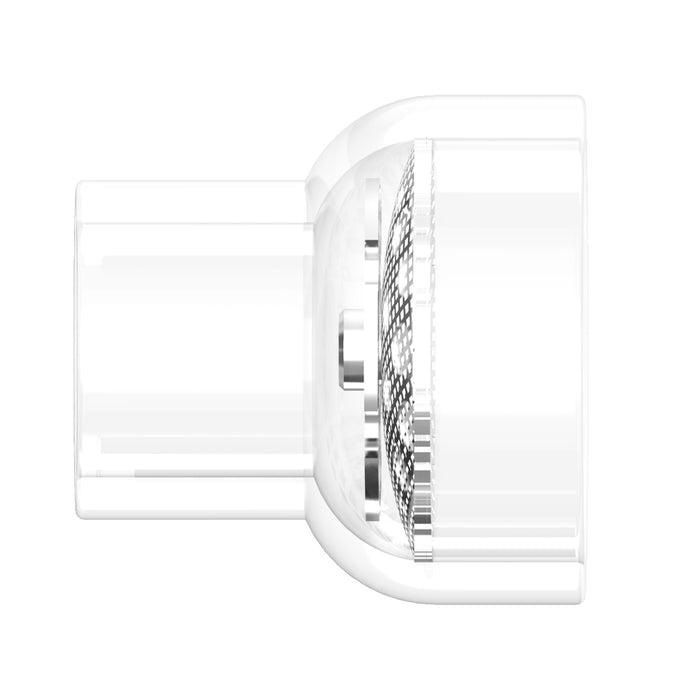

* PJZ10Q-F24 JZ10 Quartz Cup-Bore 17mm With 2.4mm Filter Screen
* PFP12Q-F24 FP12 Quartz Cup-Bore 20mm With 2.4mm Filter Screen
* PMK14Q-F24 MK14 Quartz Cup-Bore 23mm With 2.4mm Filter Screen
* PBBWQ-F24 BBW Quartz Cup-Bore 25mm With 2.4mm Filter Screen

* PJZ10D16 JZ10 Cup Filter Screen 1/16"-1.6mm
* PJZ10D32 JZ10 Cup Filter Screen 1/8"-3.2mm
* PFP12D16 FP12 Cup Filter Screen 1/16"-1.6mm
* PFP12D32 FP12 Cup Filter Screen 1/8"-3.2mm
Note:Filter Screens are not interchangeable with OEM Furick® systems

* PMK14D16 MK14 Cup Filter Screen 1/16"-1.6mm
* PMK14D32 MK14 Cup Filter Screen 1/8"-3.2mm
* PBBWD16 BBW Cup Filter Screen 1/16"-1.6mm
* PBBWD32 BBW Cup Filter Screen 1/8"-3.2mm

* P98W18 Red Silicone Rubber ‘O’ Ring
* PIT-D162432 Filter Screen Installation Tool
